Radiopaque Measuring Scales

$297.00$410.00

Clear
SKU: N-100SERIES Category:

Description

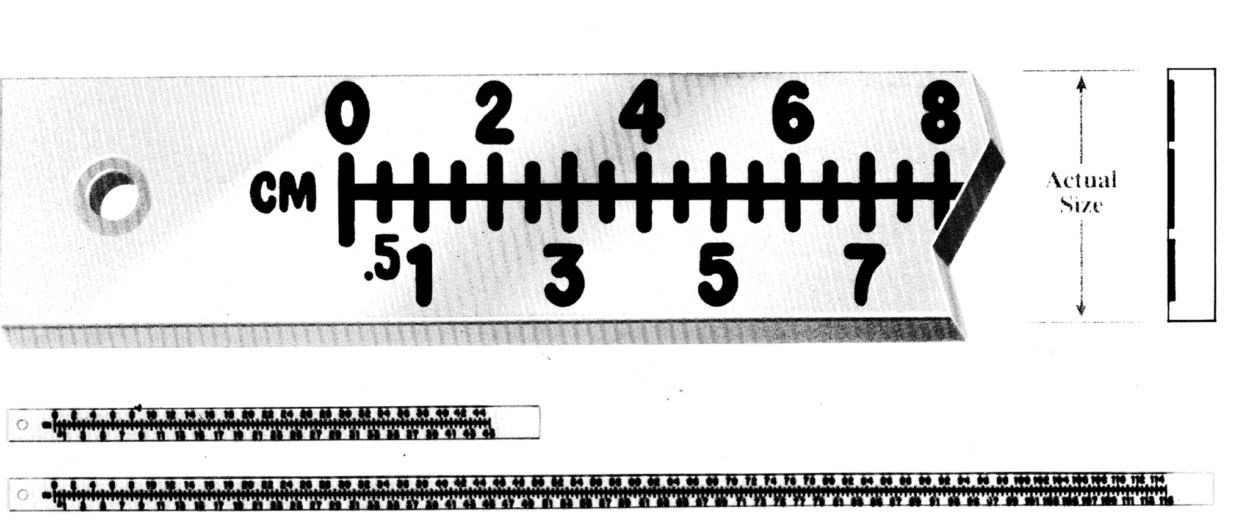

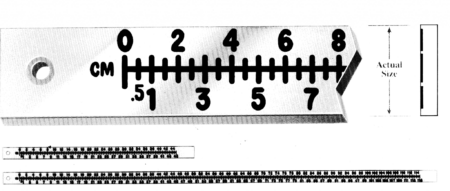

Multi-Purpose for General Radiography and C.A.T. Scanners

  • N-102 length 115cm.
  • N-100 length 45cm.
  • Both with .5cm graduations

These special rulers are used whenever a direct reading or measurements on the radiograph is necessary. Deep, .5cm graduations are engraved into tough acrylic plastic and filled with a special radiopaque compound to give a distinct reading on the radiograph. Translucent plastic with die cut legend containing sufficient opaque compound for high Kv work. Has center line marking for topographic recording. Ruler allows direct reading of measurements on the radiograph by one single exposure without further computation or obscuring the X-ray image. The opaque scale is manufactured from an extra strong 3/8″ thick acrylic which prevents breakage and raises the scale slightly to be in a similar plane with bones. Available in both 45cm and 115cm lengths with a hole for hanging and storage.

Additional information

Size

115cm Ruler, 45cm Ruler
